Project Overview
ShadeCo India Private Limited designed, fabricated and installed a school entrance tensile canopy at Delhi Public School, Shastripuram, Agra, Uttar Pradesh. The project covers the main school entrance with a twin conical canopy, also called an entrance shade structure or school gate canopy. It is made of PVC coated polyester fabric on a cantilever steel frame.
The entrance is the busiest point of the campus. Students, parents, staff and visitors gather here every morning and afternoon, often in strong sun or rain. The school wanted a covered approach that would shade this area and give the gateway a clear, recognisable look.
Twin Cone Cantilever Design
We designed two conical canopies joined together into a single roof over the entrance. The cones are carried on cantilever steel supports, which keeps the supports away from the main walking path and leaves the area under the canopy open. The raised cone shape lets rainwater run off quickly and keeps the fabric tight.
The fabric is 900 GSM PVC coated polyester, chosen for the size of the cones and daily outdoor use. The columns stand on new foundations, and the steel frame is finished in high gloss automotive Duco paint for a smooth, bright surface. The frame was designed for wind loads as per IS 875 (Part 3).
- Twin conical canopy over the school entrance
- 900 GSM PVC coated polyester fabric
- Cantilever steel frame on new foundations
- High gloss automotive Duco paint finish
Fabrication and Installation
Our in-house team made the steel frame and the fabric canopy in our workshop. The steel columns and cantilever arms were cut, welded and finished in high gloss automotive Duco paint. The 900 GSM fabric was patterned, cut and heat sealed to fit the two cones exactly. Preparing these parts in advance kept the time needed on the school campus short.

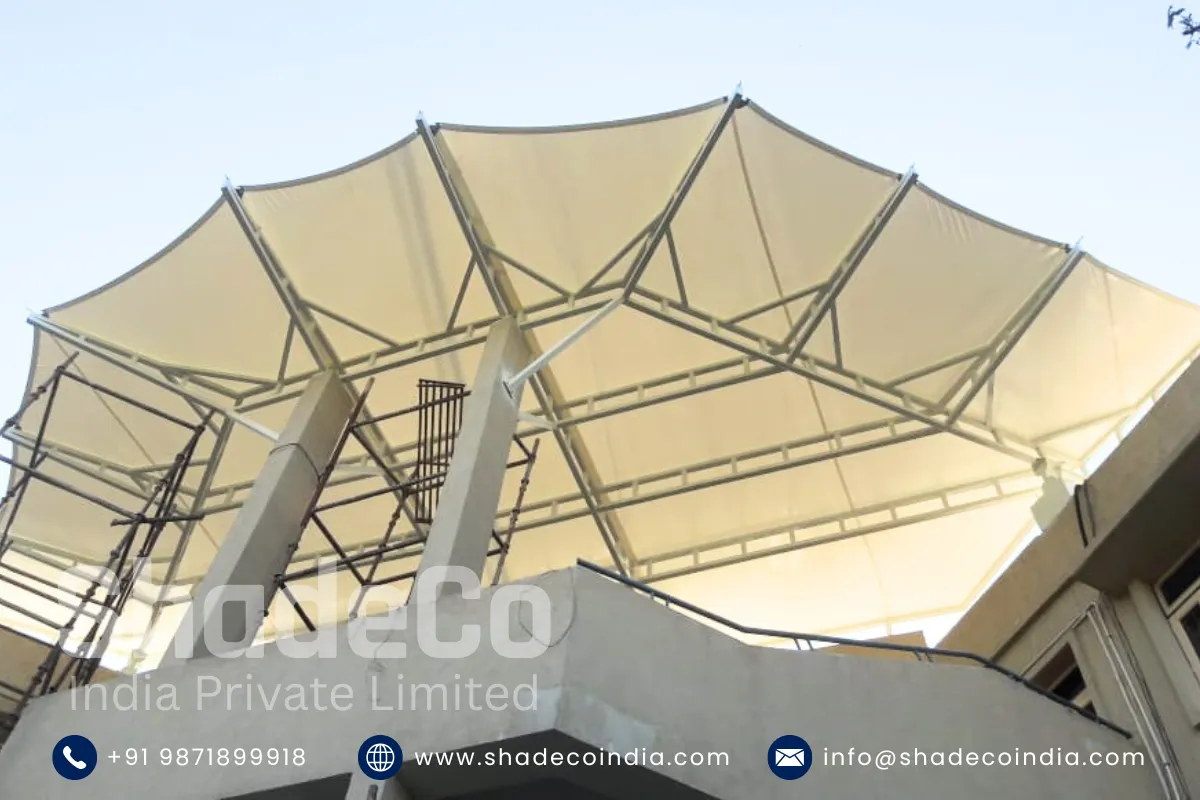

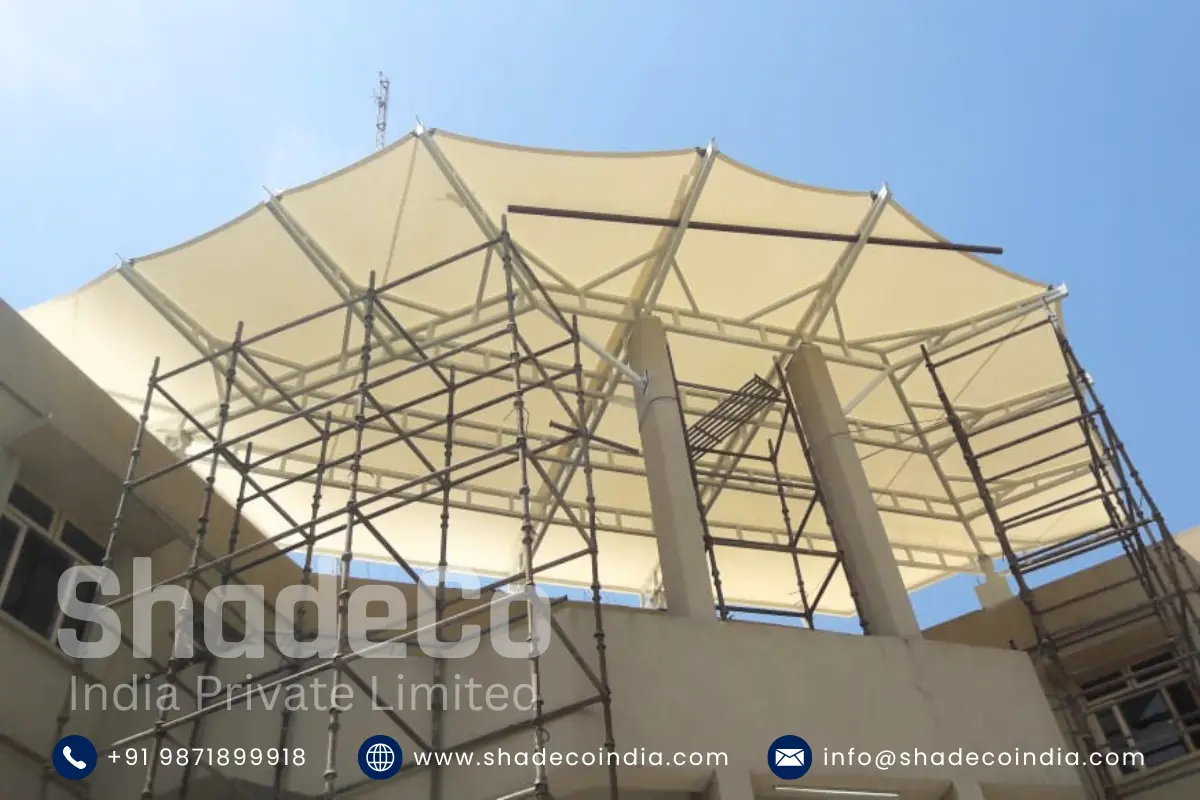

At the site, the work started with new foundations for the columns. Once they were ready, the team erected the steel frame, lifted the fabric into place and tensioned both cones until the surface was smooth and tight. All site work was carried out during the school holidays, so classes and the daily movement of students were not disturbed, and the full project took about one month.
Project Result

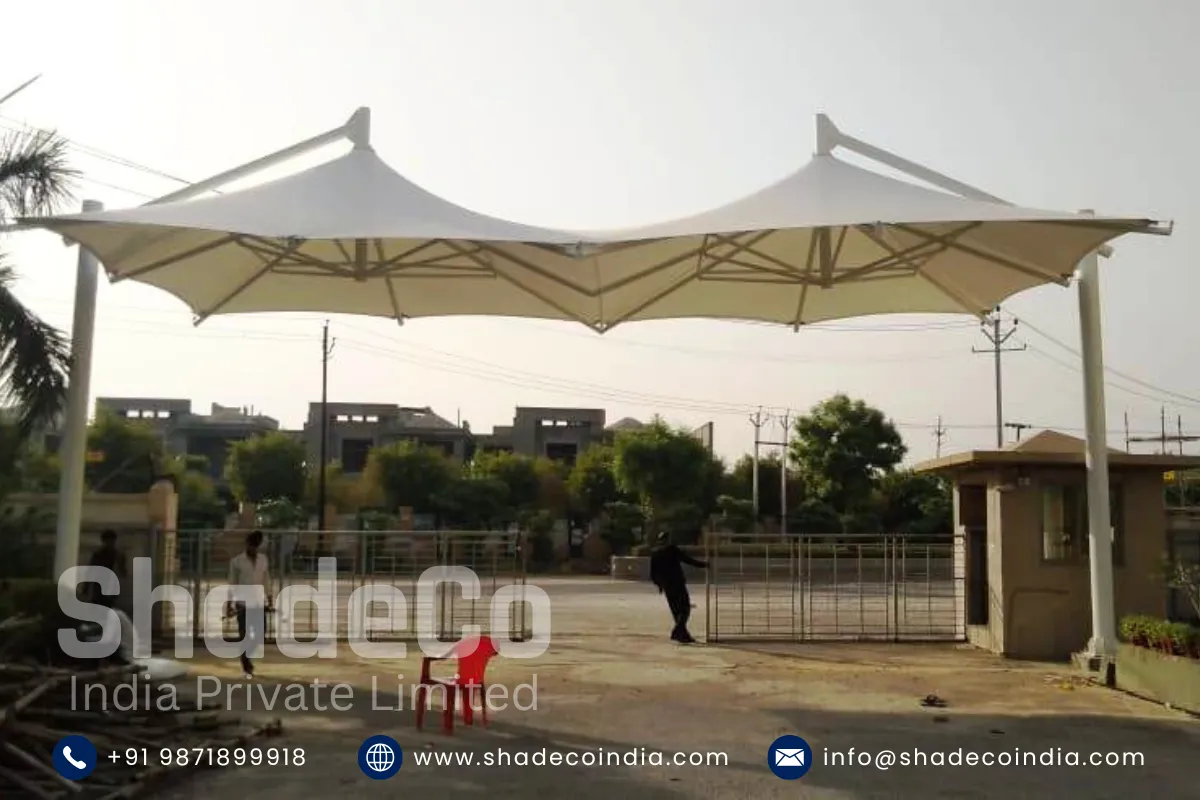

The entrance now has a shaded, covered approach that students, parents and staff use every day in sun and rain. The twin cones give the school gate a distinct look that is easy to recognise from the road.
The steel structure has a design life of 25–30 years with routine upkeep. Explore our tensile structures or browse more completed projects by ShadeCo India.
faq
Questions about this school entrance canopy
ShadeCo India installed a twin conical cantilever entrance canopy at the Shastripuram campus of Delhi Public School, Agra. It covers the approach to the main school entrance.
The canopy uses 900 GSM PVC coated polyester fabric. The steel frame stands on new foundations and has a high gloss automotive Duco paint finish.
A tensile canopy is light, lets soft daylight through and sheds rain quickly. It covers a wide entrance with few supports, so students and parents can move freely underneath.
No. Foundation work and installation were planned for the school holidays, so regular classes were not affected.
Yes. Each canopy is sized and shaped for its own entrance. Share your site photographs, approximate dimensions and requirements to get a free quotation.
