Project Overview
ShadeCo India Private Limited designed, fabricated and installed a tensile canopy over the outdoor cafe at Panjim Convention Centre in Panaji, Goa. The cafe canopy covers about 6,000 sq. ft. of open-air seating beside the building and was completed in March 2025.
Goa has strong sun for much of the year and very heavy rain during the monsoon. An open cafe with no roof can only be used for part of the day. The convention centre wanted a cover that would let guests sit outside in any season, without walls closing off the space.
Cantilever Canopy with a Curved Fabric Edge

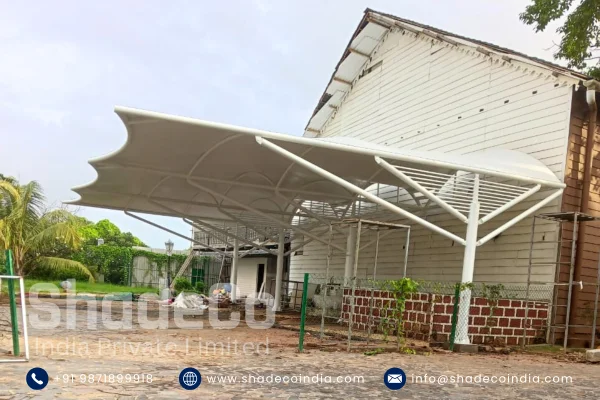

The canopy is a cantilever structure, with the steel columns placed at the back and the roof reaching forward over the seating. This keeps the cafe floor free of posts, so tables can be arranged freely. Only the front fabric edge is curved, which softens the look of the canopy from the outside and helps rainwater run off.
The roof uses 850 GSM PVC coated polyester in an opaque blockout grade. Unlike translucent fabric, blockout fabric stops direct sunlight completely, giving the seating area deep shade on bright afternoons. New foundations were cast for the columns, and the steelwork follows IS 875 (Part 3) for wind loads.
- Cantilever canopy over 6,000 sq. ft. of cafe seating
- 850 GSM PVC coated blockout fabric
- Curved front fabric edge
- Asian Paints epoxy system for coastal air
Protection for Coastal Conditions
Salty sea air in Goa makes bare steel rust quickly. To protect the frame, we used an Asian Paints epoxy system: an Apcolite Advanced epoxy primer in grey under an Apcolite epoxy finish coat. Epoxy coatings form a hard, sealed layer that resists moisture and salt far better than ordinary enamel paint.
Fabrication and Installation

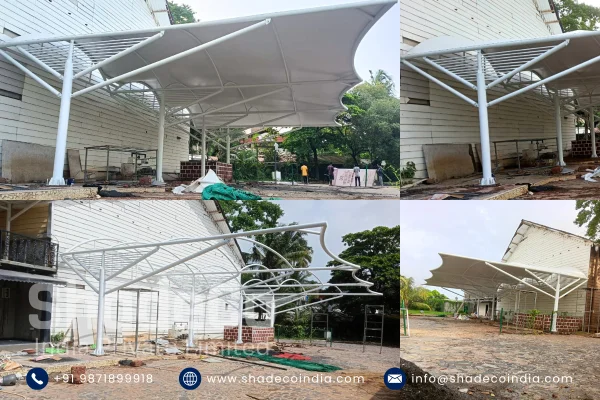

The steel frame was fabricated and coated in our workshop, and the blockout fabric was patterned and joined to fit the curved front edge. At the site, our team cast the new foundations, erected the cantilever frame and fixed and tensioned the fabric. The project took about two months.
Project Result
The outdoor cafe at Panjim Convention Centre now has about 6,000 sq. ft. of shaded seating that stays usable in midday sun and monsoon showers. The open front and post-free floor keep the space airy and easy to arrange for events.
Explore our tensile structures or browse more hospitality and commercial projects by ShadeCo India.
faq
Questions about the Panjim cafe canopy
ShadeCo India built a cantilever tensile canopy over the outdoor cafe at Panjim Convention Centre, Panaji. It covers about 6,000 sq. ft. of seating and was completed in March 2025.
Blockout fabric is an opaque PVC coated fabric that does not let direct sunlight through. It was used here to give the cafe deep shade during Goa’s bright afternoons. This canopy uses 850 GSM blockout fabric.
The frame has an Asian Paints epoxy coating system: an Apcolite Advanced epoxy primer in grey and an Apcolite epoxy finish. This sealed coating resists moisture and salt in coastal air.
A cantilever design keeps the columns at the back of the canopy. The cafe floor stays free of posts, so tables and chairs can be arranged freely under the roof.
Yes. We design cafe and restaurant canopies for coastal sites with suitable fabric and protective steel coatings. Share your seating area size and site photographs for a free quotation.
