A conical car parking shade is a peaked fabric roof arranged over one or two parking bays, with modules that can repeat along a row. It is also known as a conical car parking shed, cone parking shade, conical tensile parking canopy or peaked car shade. Hospitals, offices, colleges, hotels, malls, housing societies and visitor car parks can use this arrangement. The cone layout follows the bay positions and the space needed to approach the covered parking.
ShadeCo India Private Limited is a conical car parking shade manufacturer and supplier in India. We design, fabricate, supply and install single-bay cones, two-bay cones, linked cone rows, back-to-back double-row cones and multi-peak visitor parking clusters. The fabric is PVC or PVDF-coated polyester for full rain cover, or HDPE shade net where only sun cover is needed. The parking plan helps determine how the individual cones connect along the row and where their supports can stand.
Planning starts with matching cones to bays. We first decide whether each cone covers one car or two, because that sets the cone size, the column spacing and how many gutters the row needs. Then we place columns on the lines between bays, so no post stands where a car door opens.
Conical Car Parking Shade at a Glance
- Structure Types: Single-bay, two-bay, linked row, back-to-back double-row and multi-peak cluster cones
- Roofing Options: PVC or PVDF-coated tensile fabric for rain cover, or HDPE shade net for sun cover only
- Frame Material: Mild steel (MS) or galvanized steel (GI) columns, edge beams and peak rings; SS and aluminium as per project requirement
- Surface Finish: Powder coating or automotive paint for a neat look, with epoxy paint or hot-dip galvanizing as options
- Suitable For: Hospitals, offices, colleges, hotels, malls, housing societies and visitor car parks
- Service Area: Design, supply and installation of conical car parking shades across India
Why Choose a Conical Car Parking Shade
A conical car parking shade gives each bay its own peaked roof, so a row of parking looks planned rather than added. The rising fabric gives more headroom in the middle of the bay, where the car sits. Visitors notice the repeating peaks from the road, which suits hospitals, hotels and campuses.
The cone shape also handles rain well. Water runs down the fabric to the low corners, where gutters and downpipes on the shared columns take it away. Because the fabric is held tight in a curved shape, it stays firm in wind and does not flap like a flat sheet.
Types of Conical Car Parking Shades
The right cone layout depends on how many cars each cone should cover and how the bays are arranged.
Single-Bay Cone
One cone covers one car, with columns at the corners shared with the next bay. It gives the most peaks along a row and a strong visual rhythm.
Two-Bay Cone

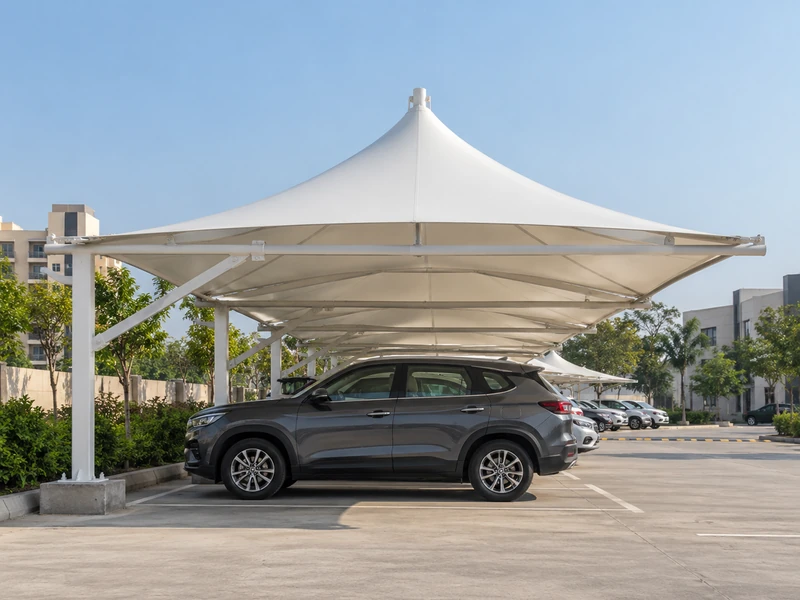

A larger cone covers two cars side by side. It halves the number of peaks and gutters, and suits standard car rows.
Linked Cone Row
Cones join edge to edge along a full row of bays, with a valley gutter at each joint. The row reads as one continuous roof line.
Back-to-Back Double-Row Cones
Two rows of cones share a central column line, covering cars parked nose to nose. This saves one line of columns.
Multi-Peak Visitor Cluster
Cones of different heights cover a small visitor parking area near an entrance. For single cones over seating and plazas, see our conical tensile structures.
Custom Conical Parking Design: Cone Size, Column Spacing and Valley Gutters
Cone size follows the bay layout on site. A one-car cone needs closer columns, while a two-car cone spans wider and rises higher at the peak. We fix the bay grid first, then size each cone to cover the car body and the space where doors open.
Columns stand on the lines between bays, usually at cone corners, where they can carry two or four cones at once. Clear height at the low edges is set for the tallest vehicles that park. The peak ring is held high enough to keep the fabric well curved and tight.
Where cones meet, rain collects in a valley between them. We fit a valley gutter at each joint and run downpipes down the shared columns to a drain. Lights can be hung from the peak rings so the cones glow softly at night.
Roofing Options for Conical Car Parking Shades
A cone is a fabric shape, so tensile fabric suits it best. This table shows how the four common parking roofs compare for a conical layout.
| Feature | Tensile Fabric | Polycarbonate | Metal Sheet | HDPE |
|---|---|---|---|---|
| Rain Cover | Full rain cover with PVC or PVDF | Full rain cover, but flat sheets cannot form a smooth cone | Full rain cover, but sheets do not suit a cone shape | Sun cover only; rain passes through |
| Light Below | Soft, even light under each peak | Bright daylight, but not suited to a cone | Dark under the sheet | Dappled light |
| Upkeep | Occasional washing; PVDF stays cleaner | Regular washing to stay clear | Low; check fixings | Occasional washing |
| Relative Cost | Medium | Not usually used for cones | Not usually used for cones | Lowest |
| Best For | Conical parking with rain cover and a clean look | Arched or flat parking sheds instead | Cantilever or arch sheds instead | Budget conical shade in dry regions |
Technical Specifications
These details are a general guide for property owners, campus planners and architects. The final cone size, column grid and fabric are confirmed after we survey the parking.
Structural Specifications
| Specification | Details |
|---|---|
| Structure Types | Single-Bay, Two-Bay, Linked Row, Back-to-Back or Multi-Peak Cluster |
| Frame Material | Mild Steel (MS) or Galvanized Steel (GI) columns, edge beams and peak rings; SS and aluminium as per project requirement |
| Surface Finish | Automotive Paint, Epoxy Paint, Powder Coating or Hot-Dip Galvanizing |
| Cone Coverage | One car or two cars per cone, set by the bay grid (Customizable) |
| Roofing Options | PVC or PVDF-Coated Tensile Fabric, or HDPE Shade Net |
| Column Position | On bay lines at cone corners, shared between neighbouring cones |
| Clear Height | Set at the low edges for the tallest vehicles that park (Customizable) |
| Drainage | Valley gutters between cones with downpipes down the shared columns |
| Foundations | RCC footings at each shared column |
| Add-Ons | Provision for Lighting at the Peak Rings |
| Wind Load Design | Columns, rings, fabric and footings designed as per IS 875 (Part 3) |
| Fabric Warranty | Up to 10 years on PVDF fabric, subject to manufacturer's terms |
Key Features
| Feature | Details |
|---|---|
| One Peak per Bay or Pair | Each cone covers one or two cars, giving a clear rhythm along the row |
| Extra Headroom at the Peak | The fabric rises over the centre of the bay, where the car sits |
| Shared Columns | One column carries the corners of several cones |
| Valley Gutters | Rain from neighbouring cones is collected at each joint |
| Firm Curved Fabric | The cone shape keeps the fabric tight and quiet in wind |
| Rain or Sun Cover | PVC or PVDF for rain, HDPE for sun only |
| Peak Ring Lighting | Lights at each peak for evening parking |
| Wind-Checked Design | Frame and fabric designed as per IS 875 (Part 3) |
Benefits of Conical Car Parking Shades
A conical car parking shade combines covered bays with a distinctive, orderly look.
- Memorable Car Park: Repeating peaks make the parking easy to spot and remember.
- Good Headroom: The roof rises over the middle of each car.
- Orderly Bays: One cone per bay or pair keeps the layout clear.
- Fewer Posts: Shared columns serve several cones at once.
- Controlled Rainwater: Valley gutters lead water to drains, not onto cars.
- Quiet in Wind: Curved, tensioned fabric does not flap.
Applications of Conical Car Parking Shades
Hospitals and hotels use conical shades over visitor and doctor parking near the entrance, where appearance matters. Colleges and offices cover long staff rows with linked cones. For other fabric parking roofs, see our car parking tensile structures.
Malls and showrooms place multi-peak clusters at the front for customer parking. Housing societies use two-bay cones over resident and visitor bays. For a single cone over seating or a plaza, see our conical tensile structures.
Conical Car Parking Shade Price in India: What Affects the Cost
The cost of a conical car parking shade depends mainly on the number of cones and whether each cone covers one car or two. One-car cones need more columns, rings and gutters for the same number of bays.
Fabric choice changes the figure: HDPE is the most economical, PVC sits in the middle and PVDF costs more but stays cleaner. Peak height, valley gutters, lighting, surface finish and footing work also affect the price.
For a quotation, share the number of bays, a photo or sketch of the parking layout, whether you want one or two cars per cone, your fabric choice and the location.
How We Design and Install a Conical Car Parking Shade
In a cone layout, every column and gutter is shared, so the bay grid is fixed before anything else.
- Step 1 – Parking survey: We measure the bays and driving aisles, mark bay lines and check drains and underground services.
- Step 2 – Cone layout: We agree one or two cars per cone, peak height, fabric colour and column positions on the bay lines.
- Step 3 – Engineering: Columns, rings, fabric tension and footings are designed for the site wind load as per IS 875 (Part 3).
- Step 4 – Fabrication: Columns, edge beams and peak rings are made and finished, and each cone is patterned and welded from fabric.
- Step 5 – Installation: Footings and columns go in first, then the edge frames, cones and valley gutters are fitted bay by bay.
- Step 6 – Handover: We check cone tension, clear height and gutter flow, and explain how to wash the fabric.
Conical Car Parking Shade Design and Installation Solutions
ShadeCo India builds conical car parking shades for hospitals, campuses, hotels and malls. Our team plans the bay grid, cones and gutters as one layout, so the car park is easy to use and looks uniform along every row.
Why Work with ShadeCo India
Since 2010, ShadeCo India has built tensile and parking structures for more than 15 years. We are certified to ISO 9001:2015, and our in-house team patterns every cone and fabricates every frame.
Delhi Public School, Food Corporation of India, L&T, TATA, Adani, Al-Karim University, Indian Oil, Omaxe, VIVO, Lakhani, Indian Railways and Reliance are among the organizations we have worked with, along with several others across India.
Before handover, each conical shade is checked for even fabric tension, peak alignment and gutter flow. Most conical parking projects are completed within 3–6 weeks, depending on the number of cones and customization.
You can also see our cantilever car parking sheds, parking shade structures and the full range of tensile structures.
Explore Our Parking Projects
ShadeCo India has designed and installed conical fabric roofs and car parking shades for healthcare, educational and industrial clients across India. Our conical work includes the atrium roof at KBN Hospital, Gulbarga, twin conical canopies at Delhi Public School, Rajnagar, and conical canopy sections at NSOI, Udhampur. Completed parking projects include the car parking shades at Thermal Power Station, Bhusawal, and St. Paul's Senior Secondary School, Udaipur.
Together, these projects show how fabric is tensioned to a peak and how parking cover performs in daily use. They are a practical reference when deciding whether a conical car parking shade should cover one bay or two. View ShadeCo India parking projects.
Service Availability Across India
ShadeCo India provides conical car parking shade solutions across major cities and regions in India. Our project cities include Delhi, Gurugram, Faridabad, Noida, Lucknow, Chandigarh, Ludhiana, Jaipur, Jodhpur, Shimla, Dehradun, Haridwar, Bhopal, Indore, Gandhinagar, Ahmedabad, Patna, Muzaffarpur, Mumbai, Pune, Bengaluru, Hyderabad, Chennai and Kochi. Other locations are reviewed based on project scope and site requirements.
Each conical layout is planned around the bay grid, local rainfall and wind, and where gutters can drain. We install the cones in stages, so part of the car park stays open.
Planning a Conical Car Parking Shade?
If you are planning peaked fabric parking for a hospital, campus, hotel or mall, ShadeCo India can advise on cone size, column layout and fabric.
We request you to share the number of bays, a photo or sketch of the parking area and whether each cone should cover one car or two. Please include the project location as well, and our team will propose a cone layout.
Please call +91-9873975818, email info@shadecoindia.com, or write to us through our contact page.
FAQ
Frequently Asked Questions - Conical Car Parking Shade
A conical car parking shade is a fabric roof that rises to a peak over one or two parking bays. Cones are repeated along a row, with columns on the bay lines. It gives rain or sun cover and a distinctive look.
The cost depends on the number of cones, one or two cars per cone, fabric, peak height, gutters and footings. HDPE costs least and PVDF most. ShadeCo India can prepare a quotation once it has the number of bays, photographs of the layout and the location.
PVC-coated polyester gives full rain cover at a moderate cost. PVDF-coated polyester also keeps out rain and has a dirt-resistant top coat. HDPE suits dry regions where only sun cover is needed.
Rain runs down each cone to its low corners. Where cones meet, a valley gutter collects it, and downpipes on the shared columns carry it to a drain.
The columns, edge beams and peak rings of a conical shade have an expected service life of 25–30 years with care. For conical parking, PVDF fabric is covered by a warranty of up to 10 years, subject to the manufacturer's terms.
A cone usually covers one car or two cars side by side. The choice depends on your bay layout and the look you want.
Conical parking shades are usually delivered in 3–6 weeks, depending on the number of cones and design. Cones are fitted bay by bay on site.
A conical shade gives a peaked, eye-catching roof with columns on the bay lines. A cantilever shed keeps the front of the bays fully open with columns at the back only. The choice depends on looks, layout and traffic.
