A petrol pump tensile canopy is a fabric roof over the fuel islands of a petrol pump that shelters vehicles, customers, attendants and dispensers. It is also known as a fuel station canopy, filling station shade, pump island canopy or forecourt tensile roof. It is used at retail petrol pumps, highway fuel stations, CNG stations, company-owned outlets and fleet fuelling yards.
ShadeCo India Private Limited is a petrol pump tensile canopy manufacturer and supplier in India. We design, fabricate, supply and install island-wise cantilever canopies, full-forecourt canopies, peaked landmark canopies, twin-mast canopies and high-clearance truck lane canopies. Fabric options are PVC, PVDF and PTFE-coated fabric, with FR grade advised, and HDPE shade net only for shade-only areas away from dispensers.
Planning starts with the forecourt layout set by the oil company. We note the pump islands, dispenser positions, vehicle entry and exit, and the tanker unloading area. Then we agree the brand fascia, canopy lights and clearance for trucks or buses.
Petrol Pump Tensile Canopy at a Glance
- Structure Types: Island-wise cantilever, full-forecourt, peaked landmark, twin-mast and truck lane canopies
- Fabric: FR-grade PVC, PVDF or PTFE-coated fabric over dispensers; HDPE shade net only for shade areas away from fuel
- Frame Material: Mild steel (MS) or galvanized steel (GI) columns on pump islands with fascia frames for branding
- Surface Finish: Automotive paint or epoxy paint in oil company colours, over powder coating or hot-dip galvanizing
- Suitable For: Retail petrol pumps, highway fuel stations, CNG stations, company outlets and fleet fuelling yards
- Service Area: Fuel station canopies designed, supplied and installed across India
Why Choose a Petrol Pump Tensile Canopy
A petrol pump tensile canopy keeps attendants, customers and dispensers out of the sun and rain during fuelling. Attendants stand on the forecourt for full shifts, and customers wait beside their vehicles. Cover also protects the dispensers and screens from direct weather.
The canopy is the most visible part of a fuel station from the road. A fabric roof with a peaked or curved outline stands out from the usual flat box canopy. Brand colours on the fascia and bright canopy lights help drivers spot the station early.
Types of Petrol Pump Tensile Canopies
The right fuel station canopy depends on the number of pump islands, the vehicles served and the brand look required.
Island-Wise Cantilever Canopy
Each pump island gets its own canopy on one column, reaching out over both sides. It keeps lanes free of extra columns and suits narrow city forecourts.
Full-Forecourt Canopy
One roof covers all pump islands and the lanes between them. Columns stand on the islands, and the fascia runs around the full edge for branding.

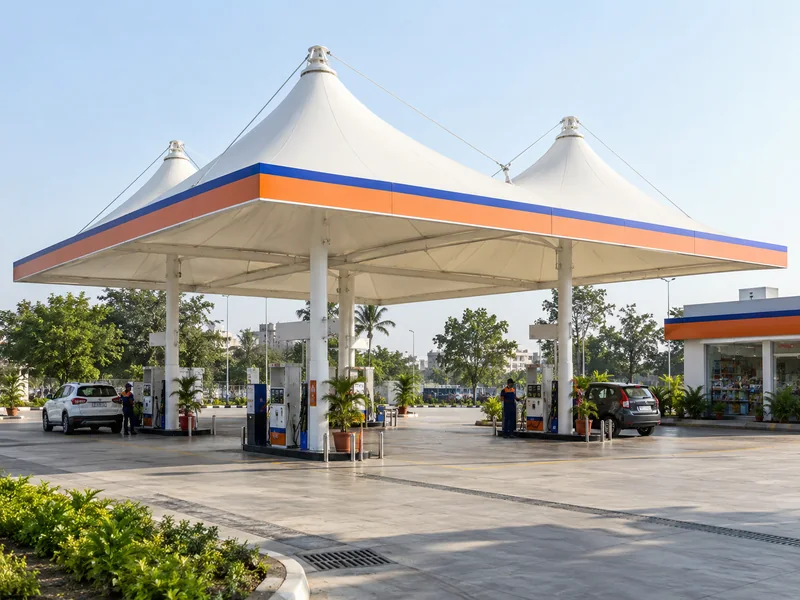

Peaked Landmark Canopy
Fabric peaks rise over each island, giving a distinctive roof line. It makes a highway station easy to spot from far away.
Twin-Mast Canopy
Two masts carry a larger span over a group of islands, leaving more open space at ground level for vehicles to turn.
Truck Lane Canopy
A high-clearance canopy covers diesel lanes used by trucks and buses. For roofs over parked trucks and cars rather than fuel islands, see our parking shade structures.
Custom Fuel Station Design: Pump Island Layout, Brand Fascia and Canopy Lighting
Columns stand on the pump islands in positions agreed with the oil company's layout. They stay clear of dispensers, nozzle reach and air and water points. Lanes between islands remain free for cars, two-wheelers and trucks.
Oil companies require their colours and logo on the canopy edge. We build a fascia frame around the canopy for branding panels or printed fabric bands. Fabric and paint colours are matched to the brand guide before fabrication.

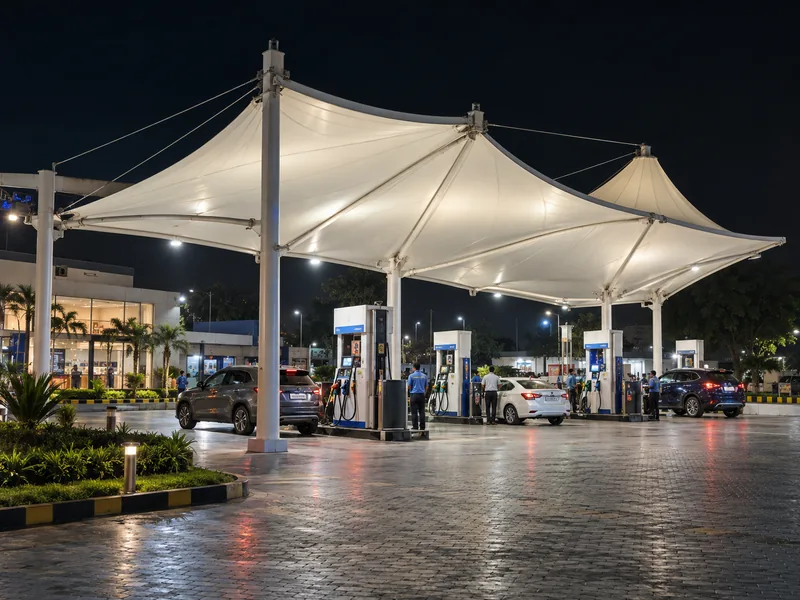

Canopy lights must give bright, even light over the islands at night. Light fittings and electrical work near dispensers follow the oil company's and the safety authority's requirements. FR-grade fabric is advised over all fuelling areas, and the tanker route stays clear of low edges.
Technical Specifications
These details are a general guide for dealers, oil company engineers and fuel station developers. The final layout, branding and lighting are confirmed against the oil company's approved forecourt plan.
Structural & Fabric Specifications
| Specification | Details |
|---|---|
| Structure Types | Island-Wise Cantilever, Full-Forecourt, Peaked, Twin-Mast, Truck Lane or Custom |
| Frame Material | Mild Steel (MS) or Galvanized Steel (GI) columns, arms and fascia frames |
| Surface Finish | Automotive Paint, Epoxy Paint, Powder Coating or Hot-Dip Galvanizing |
| Branding | Fascia frame for oil company colours, logo panels or printed fabric bands |
| Fabric Types | PVC-Coated Polyester, PVDF-Coated Polyester, PTFE-Coated Glass Fibre or HDPE Shade Net |
| Fabric Grade | FR grade recommended over fuelling areas; 750 – 900 GSM coated fabric, heavier for wide forecourt spans |
| Rain Protection | Waterproof with PVC, PVDF or PTFE; HDPE gives shade only and is kept away from dispensers |
| UV Protection | Up to 98% UV blocking, depending on the fabric |
| Temperature Resistance | −30°C to +70°C |
| Clearance | Set for cars, trucks, buses and tanker movement (Customizable) |
| Lighting | Provision for canopy lights as per oil company and safety requirements |
| Drainage | Gutters and downpipes on islands, discharging away from dispensers |
| Wind Load Design | Columns, arms and footings designed as per IS 875 (Part 3) |
| Fabric Warranty | Up to 10 years on PVDF fabric, subject to manufacturer's terms |
Key Features
| Feature | Details |
|---|---|
| Waterproof PVC / PVDF / PTFE Fabric | Keeps dispensers, screens and attendants dry during fuelling |
| UV-Resistant Coating | Blocks up to 98% of UV rays, depending on the fabric, over forecourt staff |
| Anti-Wicking Fabric | Sealed edges stop rain wicking into the fabric along the fascia |
| Fungicide Finish | Prevents mould spots that would spoil the brand look |
| Moisture and Corrosion Resistant | Galvanized and painted steel resists rust from fuel vapour and road splash |
| Dirt-Resistant Top Coat | PVDF top coat helps the canopy shed exhaust soot and dust |
| Flame-Retardant Grade Available | FR-grade fabric recommended over all fuelling areas |
| All-Weather Performance | Columns and arms designed for site wind loads as per IS 875 (Part 3) |
Benefits of Petrol Pump Tensile Canopies
A fuel station canopy protects people and equipment while giving the station a strong roadside presence.
- Comfortable Fuelling: Attendants and customers stay in shade and out of rain.
- Protected Dispensers: Pumps and screens face less direct sun and rain.
- Strong Brand Presence: Fascia colours and canopy shape stand out from the road.
- Bright Night Forecourt: Canopy lights give even light over every island.
- Free-Flowing Lanes: Columns stand on islands, keeping lanes clear.
- Distinct Roof Line: Peaked fabric forms set the station apart from flat canopies.
Applications of Petrol Pump Tensile Canopies
Retail petrol pumps use tensile canopies over fuel islands in cities and towns. Highway fuel stations use peaked landmark canopies and high truck lanes. For roofs over car parking bays at service areas, see our car parking tensile structures.
CNG stations use canopies over gas dispensers where vehicles queue for long periods. Company-owned outlets refresh their forecourt look with brand-matched fabric. Fleet yards, bus depots and logistics parks cover their in-house fuelling points.
Petrol Pump Tensile Canopy Price in India: What Affects the Cost
The cost of a petrol pump tensile canopy depends mainly on the number of pump islands and the canopy type. A full-forecourt canopy covers more area than island-wise canopies.
FR-grade fabric, fascia branding, canopy lighting provisions, truck clearance, finish and footings change the figure. On a fuel station, PTFE fabric costs the most and HDPE the least. Work at a running station may need phasing island by island.
For a quotation, share the oil company forecourt layout, the number of islands, the brand requirements and the location.
How We Design and Install a Petrol Pump Tensile Canopy
Fuel stations have strict safety rules, so the canopy is planned with the dealer and the oil company from day one.
- Step 1 – Forecourt survey: We measure the forecourt, islands and dispensers, and note tanker routes, underground tanks and pipelines.
- Step 2 – Layout and branding: We propose the canopy type, column positions, clearance and fascia branding as per the oil company layout.
- Step 3 – Engineering: Columns, arms and footings are designed for the site wind load as per IS 875 (Part 3), avoiding underground tanks and lines.
- Step 4 – Fabrication: Steel is finished in brand colours in our workshop, and FR-grade fabric is cut and welded to the canopy form.
- Step 5 – Installation: Work follows the station's safety permits, with islands closed one at a time and hot work controlled.
- Step 6 – Handover: We check clearances, fascia and lighting provisions, and share care and inspection guidance.
Petrol Pump Tensile Canopy Design and Installation Solutions
ShadeCo India builds canopies for petrol pumps, CNG stations and fleet fuelling yards. Our team plans the canopy around the forecourt layout, brand guide and safety rules, so the station looks right and runs safely.
Why Work with ShadeCo India
ShadeCo India, founded in 2010, has more than 15 years of tensile structure experience and ISO 9001:2015 certification. Our in-house engineers, fabricators and installers coordinate directly with dealers and oil company engineers.
Our clients include Indian Oil, along with Delhi Public School, Food Corporation of India, L&T, TATA, Adani, Al-Karim University, Omaxe, VIVO, Lakhani, Indian Railways and Reliance. We also serve several other fuel, industrial and institutional clients across India.
On every forecourt, we check island clearances, brand fascia alignment and tanker route height before handover. Delivery typically takes 3–6 weeks, depending on island count and customization.
You can also see our EV charging station canopies, toll plaza tensile canopies and the full range of tensile structures.
Explore Our Projects & Design References
The references below show our canopies over parking, entrances, lawns and terraces. They help when comparing column finishes and fabric shapes for a forecourt, while each fuel station canopy follows its oil company layout. View more ShadeCo India projects.
Service Availability Across India
ShadeCo India provides petrol pump tensile canopy solutions across major cities and regions in India. Fuel station work can be done in Delhi, Gurugram, Faridabad, Noida, Lucknow, Chandigarh, Ludhiana, Jaipur, Jodhpur, Shimla, Dehradun, Haridwar, Bhopal, Indore, Gandhinagar, Ahmedabad, Patna, Muzaffarpur, Mumbai, Pune, Bengaluru, Hyderabad, Chennai and Kochi. Highway and rural sites are taken up based on project scope and site requirements.
Each fuel station canopy is planned around local wind, rainfall and the station's trading hours. We work under the station's safety permits and close only one island at a time.
Planning a Petrol Pump Tensile Canopy?
If you are building a new fuel station or refreshing an existing forecourt, ShadeCo India can advise on canopy type, branding and clearance.
We request you to share the oil company forecourt layout, the number of pump islands, brand requirements and site photographs. Please also mention the location, so our team can propose a suitable canopy.
Kindly reach us on +91-9873975818, write to info@shadecoindia.com, or submit your details through our contact page.
FAQ
Frequently Asked Questions - Petrol Pump Tensile Canopy
A petrol pump tensile canopy is a fabric roof over the fuel islands at a petrol pump. It shelters vehicles, customers, attendants and dispensers from sun and rain. It carries the oil company's brand colours and canopy lights.
The cost depends on the number of islands, canopy type, FR fabric, branding, lighting provisions and clearance. PTFE costs more than PVDF or PVC, and HDPE least. ShadeCo India quotes from the forecourt layout and location.
FR-grade PVC, PVDF or PTFE-coated fabric is advised over all fuelling areas. PVDF stays clean and carries a warranty of up to 10 years. HDPE shade net should only be used for shade areas away from dispensers.
Yes. Coated fabric keeps dispensers and staff dry, and gutters on the islands drain water away. Columns, arms and footings are designed for the site wind load as per IS 875 (Part 3).
The galvanized and painted steel frame is expected to last 25–30 years with care. For fuel station canopies, PVDF fabric carries a warranty of up to 10 years, subject to the manufacturer's terms.
Height is set by the vehicles served, from cars to trucks and buses, and by tanker movement. Diesel lanes for heavy vehicles get a higher canopy. We follow the oil company's layout for final clearances.
A forecourt canopy is usually delivered within 3–6 weeks, depending on island count and design. Site work runs one island at a time, so the station keeps selling fuel.
Yes. A fascia frame runs around the canopy for logo panels or printed fabric bands in brand colours. We match colours to the brand guide and fix all panels to the steel frame.
