A loading dock tensile canopy is a fabric roof over truck loading and unloading bays that keeps goods, workers and trucks dry and shaded. It is also known as a dock shelter canopy, loading bay shed, truck dock canopy or warehouse loading canopy. It is used at warehouses, factories, logistics parks, cold stores, distribution centres and FCI-type storage depots.
ShadeCo India Private Limited is a loading dock tensile canopy manufacturer and supplier in India. We design, fabricate, supply and install wall-mounted cantilever dock canopies, freestanding dock canopies, drive-through loading canopies, multi-bay dock canopies and loading yard canopies. Fabric is chosen from PVC, PVDF and PTFE-coated fabric for rain cover, or HDPE shade net for shade-only yards.
Planning starts with the trucks. We record the largest trucks and containers that use the dock, their reversing path and the height of their bodies. Then we place supports so trucks, forklifts and dock levellers can work without hitting the frame.
Loading Dock Tensile Canopy at a Glance
- Structure Types: Wall-mounted cantilever, freestanding, drive-through, multi-bay and loading yard canopies
- Fabric: PVC, PVDF or PTFE-coated fabric to keep cargo dry, or HDPE shade net for shade-only open yards
- Frame Material: Mild steel (MS) or galvanized steel (GI) arms on the building wall or columns outside the truck path
- Surface Finish: Hot-dip galvanizing or epoxy paint for industrial sites, with powder coating or automotive paint options
- Suitable For: Warehouses, factories, logistics parks, cold stores, distribution centres and storage depots
- Service Area: Truck dock canopies designed, supplied and installed across India
Why Choose a Loading Dock Tensile Canopy
A loading dock tensile canopy keeps goods dry while they move between the truck and the warehouse. Rain at an open dock wets cartons, grain bags and machinery, and loading often stops until it clears. A canopy lets work continue in the monsoon and protects stock from damage.
Shade also helps the people doing the work. Loaders and forklift drivers work long shifts at the dock, often in full sun. A fabric canopy cools the area, and its wide spans keep the truck path free of extra columns.
Types of Loading Dock Tensile Canopies
The right dock canopy depends on the building wall, the truck types and how much space trucks need to reverse.

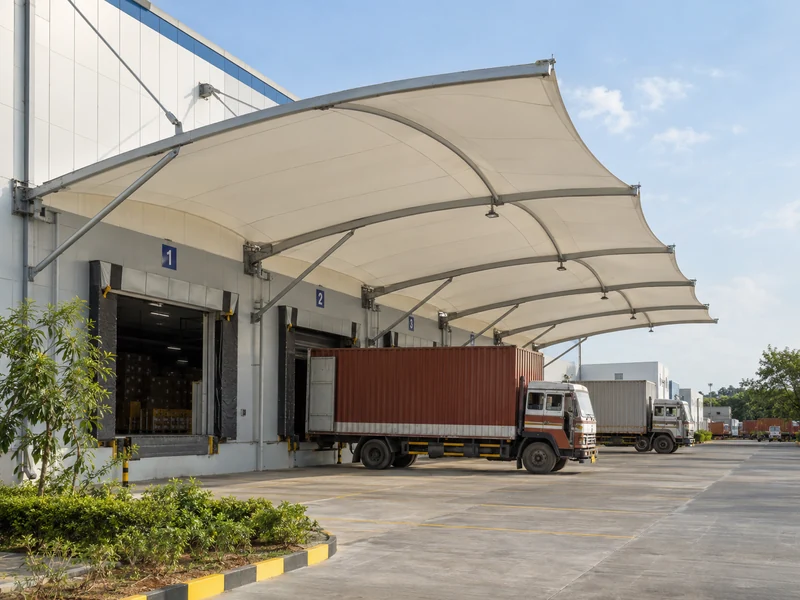

Wall-Mounted Cantilever Dock Canopy
Arms fixed to the warehouse wall carry the roof out over the trucks, with no columns in the yard. It is the cleanest option where the wall or frame can carry the load.

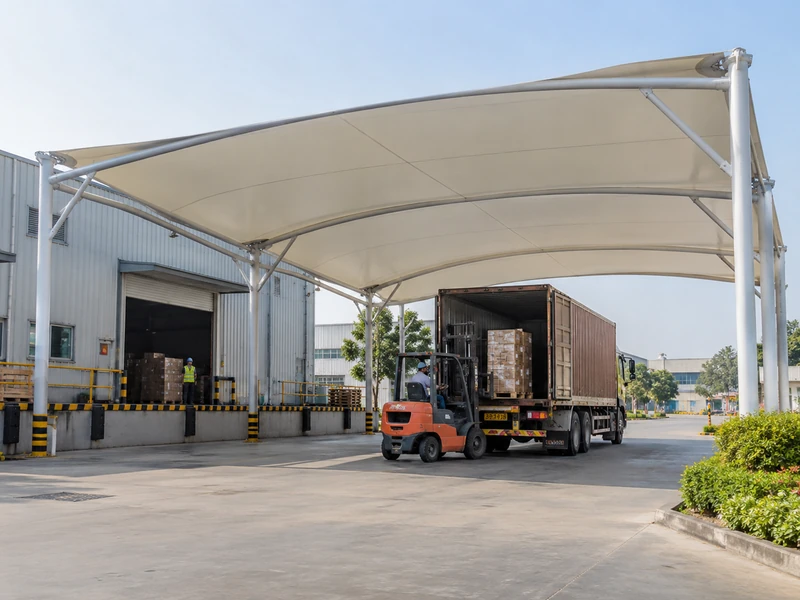

Freestanding Dock Canopy
Columns stand beyond the truck turning area, and the roof spans back to the dock. It suits buildings whose walls cannot carry extra load.
Drive-Through Loading Canopy
Trucks drive in under the canopy, load from the side and drive out. It suits ground-level loading by forklift and busy distribution yards.
Multi-Bay Dock Canopy
One long canopy covers a row of dock doors and the trucks parked at them. It gives a uniform roof line along the warehouse.
Loading Yard Canopy
A large canopy covers an open yard where goods are sorted or stacked before loading. For long arched roofs over yards, see our barrel vault tensile structures.
Custom Dock Canopy Design: Truck Clearance, Reversing Paths and Forklift Access
Clear height is set by the tallest trucks and containers using the dock. We keep the lowest edge of the frame above them, with extra margin for bumpy yards. The roof also overlaps the truck body, so rain does not fall between truck and dock.
Trucks swing wide when reversing into a dock. We trace their path and keep columns outside it, with guard posts where trucks pass close. Dock levellers, seals and doors stay free to work.
Forklifts and pallet trucks need clear space beside each bay. Lighting fixed to the frame helps night shifts load safely. Gutters and downpipes carry rainwater away from dock pits and leveller housings.
Technical Specifications
These details are a general guide for warehouse owners, logistics operators and plant engineers. The final clearance, supports and fabric are confirmed after we see the dock, the building and the trucks.
Structural & Fabric Specifications
| Specification | Details |
|---|---|
| Structure Types | Wall-Mounted Cantilever, Freestanding, Drive-Through, Multi-Bay, Loading Yard or Custom |
| Frame Material | Mild Steel (MS) or Galvanized Steel (GI) arms, columns and trusses |
| Surface Finish | Automotive Paint, Epoxy Paint, Powder Coating or Hot-Dip Galvanizing |
| Truck Clearance | Set by the tallest trucks and containers, with margin for uneven yards |
| Impact Protection | Guard posts at columns near truck paths |
| Fabric Types | PVC-Coated Polyester, PVDF-Coated Polyester, PTFE-Coated Glass Fibre or HDPE Shade Net |
| Fabric Weight | 750 – 900 GSM coated fabric for short canopies; 1050 GSM or heavier for wide dock spans |
| Rain Protection | Waterproof with PVC, PVDF or PTFE, overlapping the truck body; HDPE gives shade only |
| UV Protection | Up to 98% UV blocking, depending on the fabric |
| Temperature Resistance | −30°C to +70°C |
| Projection and Length | Set by truck length, dock doors and reversing space (Customizable) |
| Drainage | Gutters and downpipes discharging away from dock pits and levellers |
| Add-Ons | Provision for Dock Lighting and Guard Posts |
| Wind Load Design | Arms, columns and fixings designed as per IS 875 (Part 3) |
| Fabric Warranty | Up to 10 years on PVDF fabric, subject to manufacturer's terms |
Key Features
| Feature | Details |
|---|---|
| Waterproof PVC / PVDF / PTFE Fabric | Keeps cartons, sacks and pallets dry between truck and dock |
| UV-Resistant Coating | Blocks up to 98% of UV rays, depending on the fabric, over loading crews |
| Anti-Wicking Fabric | Sealed edges stop rain wicking into fabric along the dock wall joint |
| Fungicide Finish | Fights mould on canopies near cold stores and humid warehouses |
| Moisture and Corrosion Resistant | Galvanized or epoxy-painted steel resists rust from diesel and yard dust |
| Dirt-Resistant Top Coat | PVDF top coat helps the canopy shed exhaust soot |
| Flame-Retardant Grade Available | FR-grade fabric on request for warehouses storing sensitive goods |
| All-Weather Performance | Arms and columns designed for site wind loads as per IS 875 (Part 3) |
Benefits of Loading Dock Tensile Canopies
A dock canopy keeps goods moving and protected in every season.
- Loading in the Monsoon: Work continues in rain without stopping the dock.
- Dry, Undamaged Goods: Cartons, sacks and machinery stay dry while loading.
- Cooler Work Area: Loaders and forklift drivers work in shade.
- Clear Truck Path: Wall-mounted arms or remote columns keep the yard free.
- Safer Night Shifts: Dock lighting on the frame improves visibility.
- Light on the Building: Fabric adds little load to existing warehouse walls.
Applications of Loading Dock Tensile Canopies
Warehouses and logistics parks fit canopies over dock doors where trucks load and unload all day. Factories cover dispatch and raw material docks. For roofs carried from one side only, see our cantilever shade structures.
Cold stores use canopies to keep sun off trucks at the dock and reduce heat at the doors. Food and grain depots protect sacks from rain during handling. E-commerce and courier hubs cover sorting yards and two-wheeler loading zones.
Loading Dock Tensile Canopy Price in India: What Affects the Cost
The cost of a loading dock tensile canopy depends mainly on the number of dock doors, the projection and the clearance. Wall-mounted canopies need a wall check, while freestanding ones need larger columns and footings.
Fabric type, guard posts, lighting, gutters, finish and work around live docks change the figure. For dock canopies, PTFE fabric costs the most and HDPE the least. Night or weekend work to avoid stopping operations also affects cost.
For a quotation, share the number of docks, truck types, building photos, wall or frame details and the location.
How We Design and Install a Loading Dock Tensile Canopy
Docks keep working during installation, so we plan the work around shifts and truck movements.
- Step 1 – Dock survey: We measure dock doors, levels and the yard, record truck types and check the building wall or frame.
- Step 2 – Layout and drawings: We propose the canopy type, projection, clearance and support positions outside the truck paths.
- Step 3 – Engineering: Arms, columns, wall fixings and footings are designed for the site wind load as per IS 875 (Part 3).
- Step 4 – Fabrication: Steel is galvanized or painted in our workshop, and fabric is cut to the dock length.
- Step 5 – Installation: Work runs dock by dock, often at night or on weekends, with the yard barricaded around each bay.
- Step 6 – Handover: We check clearances, guard posts and drainage, then explain cleaning and yearly inspection.
Loading Dock Tensile Canopy Design and Installation Solutions
ShadeCo India builds canopies for warehouse docks, factory dispatch bays and logistics yards. Our team plans each canopy around trucks, forklifts and the building, so loading stays safe and goods stay dry.
Why Work with ShadeCo India
ShadeCo India has built tensile structures since 2010, bringing more than 15 years of experience, and is ISO 9001:2015 certified. In-house engineers, fabricators and installers let us schedule dock work around shifts and truck arrivals.
Food Corporation of India, L&T, TATA, Adani, Reliance, Indian Oil, Indian Railways, Omaxe, VIVO, Lakhani, Delhi Public School and Al-Karim University are among our clients. We also work with several other organizations across India.
On every dock canopy, we check truck clearance, support positions and gutters before handover. Delivery typically takes 3–6 weeks, depending on the number of docks and customization.
You can also see our toll plaza tensile canopies, prefabricated steel buildings and the full range of tensile structures.
Explore Our Projects & Design References
Our earlier work over parking bays, entrances, lawns and terraces appears below. They help when comparing frame finishes and fabric for an industrial dock, while each dock canopy is sized for its trucks. View more ShadeCo India projects.
Service Availability Across India
ShadeCo India provides loading dock tensile canopy solutions across major cities and regions in India. Industrial sites can be served in Delhi, Gurugram, Faridabad, Noida, Lucknow, Chandigarh, Ludhiana, Jaipur, Jodhpur, Shimla, Dehradun, Haridwar, Bhopal, Indore, Gandhinagar, Ahmedabad, Patna, Muzaffarpur, Mumbai, Pune, Bengaluru, Hyderabad, Chennai and Kochi. Logistics parks and other locations are taken up based on project scope and site requirements.
Each dock canopy is planned around local rainfall, wind and the site's shift pattern. We agree truck diversions and safe zones with the site team before work starts.
Planning a Loading Dock Tensile Canopy?
If you are planning cover for warehouse docks, factory dispatch bays or loading yards, ShadeCo India can advise on canopy type, clearance and supports.
We request you to share the number of docks, the truck types, building photographs and wall or frame details. Please also mention the location, so our team can propose a suitable dock canopy.
You can contact us at +91-9873975818, write to info@shadecoindia.com, or use our contact page.
FAQ
Frequently Asked Questions - Loading Dock Tensile Canopy
A loading dock tensile canopy is a fabric roof over truck loading bays at a warehouse or factory. It keeps goods, workers and trucks dry and shaded during loading. It is fixed to the building wall or stands on columns outside the truck path.
The cost depends on the number of docks, projection, clearance, fabric and support type. PTFE costs the most and HDPE the least for dock canopies. ShadeCo India quotes from dock count, truck types, photos and location.
PVC or PVDF-coated fabric is best because cargo must stay dry. PVDF sheds diesel soot and has a warranty of up to 10 years. PTFE suits long-life logistics hubs, and HDPE suits open yards needing shade only.
Yes. The canopy overlaps the truck body so rain does not fall between truck and dock. Arms, columns and fixings follow the site wind load as per IS 875 (Part 3).
Galvanized dock canopy frames are expected to serve 25–30 years with yearly checks. PVDF fabric over loading docks is warranted for up to 10 years, subject to the manufacturer's terms.
Often, yes, if the wall or building frame can carry the load. We check the structure first. If it cannot, a freestanding canopy on columns outside the truck path is used.
Dock canopies are usually delivered in 3–6 weeks, depending on the number of docks and design. Site work can run at night or on weekends to keep docks working.
Clearance is set by the tallest trucks and containers using the dock, plus a margin for uneven yards. We confirm truck types with the site team before design.
