A patio shade sail is a fabric sail that shades a patio or outdoor dining area right next to the home. One side fixes to the house wall and the other to posts. It is also known as a patio sun sail, backyard patio shade, house-attached shade sail or outdoor dining sail. It is used at independent houses, villas, ground-floor apartments, farmhouses and guest houses.
ShadeCo India Private Limited is a patio shade sail manufacturer and supplier in India. We design, fabricate, supply and install wall-and-post patio sails, twisted hypar patio sails, double patio sails, corner patio sails and dining-table sails. Fabric options are breathable UV-stabilised HDPE for shade and PVC-coated polyester when the patio is used in the monsoon.
Planning starts at the house wall. We look for strong points such as RCC beams and columns that can hold the high corners. Then we check the afternoon sun, because that is when patios get hottest and the sail must block it.
Patio Shade Sail at a Glance
- Sail Shapes: Square, rectangle, hypar and triangle sails sloping away from the house
- Fabric: Breathable HDPE for a cool patio, or PVC-coated polyester for monsoon use
- Posts and Fixings: Wall pad eyes on beams or columns at the house side, posts at the outer edge
- Surface Finish: Automotive paint or powder coating matched to the house, with epoxy or galvanizing options
- Suitable For: Independent houses, villas, ground-floor apartments, farmhouses and guest houses
- Service Area: House-side patio sails installed across India
Why Choose a Patio Shade Sail
A patio shade sail makes the space right outside your door usable in the afternoon, when sun hits the house and patio hardest. Patios often face west or south and turn into heat traps. A sail cuts that sun and also keeps heat off the glass doors and rooms behind them.
Because one side fixes to the house, a patio sail needs fewer posts than a freestanding one. It feels like part of the home, not an add-on. It also costs far less than a built pergola or roof.
Types of Patio Shade Sails
The right patio sail depends on the wall available, the patio size and the direction of the afternoon sun.
Wall-and-Post Patio Sail

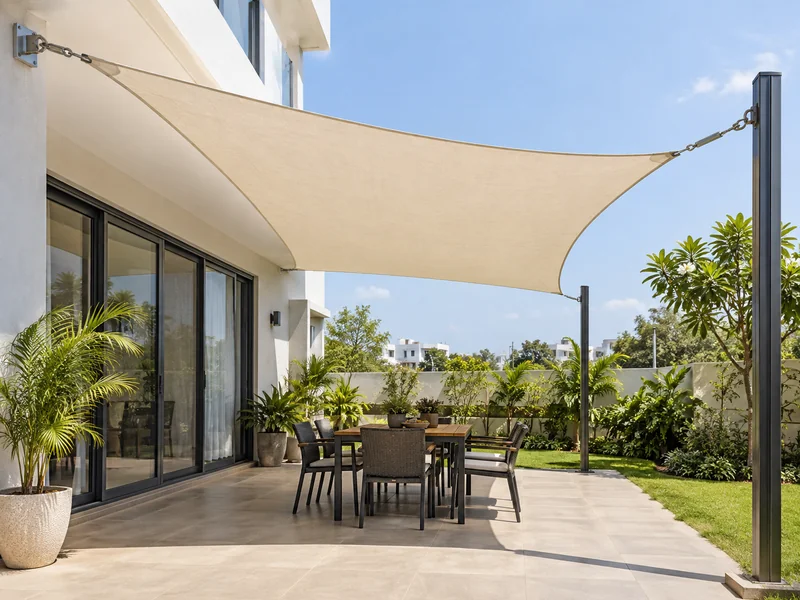

Two high corners fix to the house wall and two low corners go to posts at the patio edge. It is the most common patio layout.
Twisted Hypar Patio Sail
One wall corner and one post corner sit high, with the others low. The twist adds style and keeps the sail tight.
Double Patio Sail
Two sails at slightly different heights cover a wide patio. The gap between them lets hot air escape near the house.
Corner Patio Sail
A triangle fixes to two walls that meet at a corner and one post. It suits L-shaped patios and courtyards. Read about this shape on our triangle shade sails page.
Dining-Table Sail
A compact sail shades only the outdoor dining table, angled to block the sun during meals.
Patio Shade Sail Design: Fixing Points, Slope and Tension
House-side corners fix only to strong points, such as RCC beams or columns, not to brick infill or plaster. We check those points first and keep fixings clear of window frames, sliding door tracks and electrical lines. Each fixing is sealed against water entering the wall.

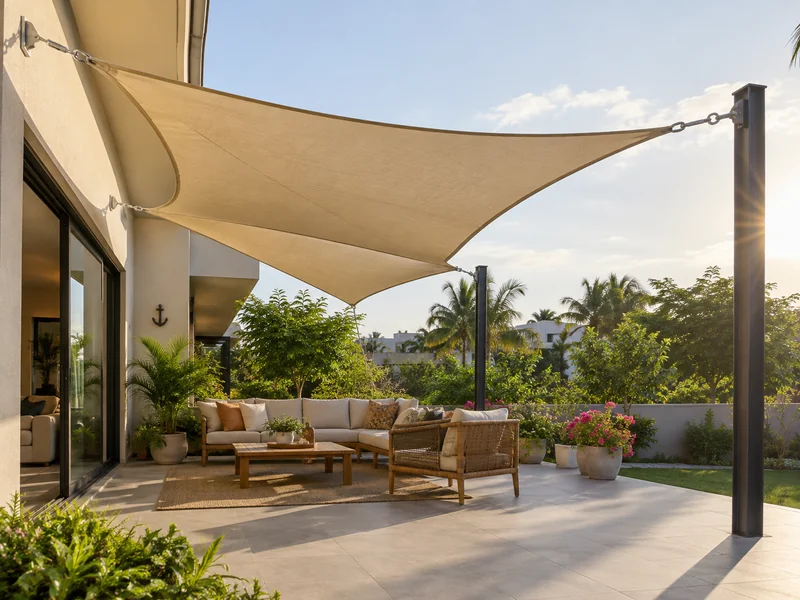

The sail slopes down and away from the house, so rain and leaves fall to the garden side. With PVC sails, the low corner sits over a drain or planting, never at the door. The slope also lets warm air move away from the house.
We angle the sail for the afternoon sun, since that is when patios need shade most. Final sizes are measured after the wall fixings and posts are in. Stainless turnbuckles set the tension, which we re-check after the first few weeks.
Technical Specifications
These details are a general guide for homeowners and architects. The final fixing points, slope and fabric are confirmed after we check the house wall and patio.
Shade Sail Specifications
| Specification | Details |
|---|---|
| Sail Shapes | Square, rectangle, hypar, triangle or double-sail patio layouts |
| Fabric Options | UV-stabilised HDPE shade fabric (breathable) or PVC-coated polyester (waterproof) |
| Edges | Catenary edges reinforced with webbing or edge cable |
| Corner Hardware | Stainless steel D-rings, turnbuckles, shackles and pad eyes |
| Support Posts | Mild steel or galvanized steel posts at the outer patio edge |
| Surface Finish | Automotive paint, epoxy paint, powder coating or hot-dip galvanizing |
| Wall Fixings | Pad eyes on RCC beams or columns of the house only, sealed against water |
| Foundation | RCC footings for posts, designed for site soil and load |
| Slope and Drainage | Slope away from the house; PVC low corner over a drain or planting |
| Colours | White, ivory, sand and a range of bright and neutral colours |
| UV Protection | Up to 98% UV blocking, depending on the fabric |
| Wind Load Design | Wall fixings, posts and footings checked for wind as per IS 875 (Part 3) |
Key Features
| Feature | Details |
|---|---|
| Afternoon Sun Control | Angled to block the hottest sun on the patio and doors |
| UV-Stabilised Fabric | Holds up in direct sun beside the house |
| Breathable or Waterproof Option | HDPE for a cool patio; PVC for monsoon dining |
| Catenary Edges | Clean curves suit the lines of the house |
| Stainless Steel Hardware | Wall plates and fittings resist rust |
| Strong Wall Fixings | High corners fix only to beams or columns |
| Adjustable Tension | Turnbuckles keep the sail tight after settling |
| Slope Away from the House | Rain and leaves fall to the garden side |
Benefits of Patio Shade Sails
A patio sail turns the space outside your door into a shaded outdoor room.
- Usable Afternoons: The patio stays comfortable when the sun is strongest.
- Cooler Rooms: Less sun on glass doors keeps rooms behind them cooler.
- Fewer Posts: The house wall carries the high corners.
- Looks Built-In: Colours and shapes can match the house.
- Lower Cost: Much cheaper than a pergola or built roof.
- Dry Option: PVC sails keep the patio usable in light rain.
Applications of Patio Shade Sails
Homeowners use patio sails over outdoor dining, seating and play spaces next to the house. Villas fit them outside living rooms and bedrooms that open onto the garden. For sails further out in the lawn, see our garden shade sails.
Ground-floor apartments shade their private patios. Farmhouses and guest houses cover verandas and breakfast areas. Where the patio must stay dry in the monsoon, our waterproof shade sails are the better fit.
Patio Shade Sail Price in India: What Affects the Cost
The cost of a patio shade sail depends mainly on the patio size and how many posts are needed. Using the house wall for high corners saves on posts.
Fabric type, wall fixings into beams or columns, post height, RCC footings, stainless hardware and colours affect the figure. A waterproof patio sail costs more than an HDPE one.
For a quotation, share photos of the patio and house wall, the patio size, which way it faces and the location.
How We Plan and Install a Patio Shade Sail
A patio sail is half on the house, so we treat the wall fixings with as much care as the posts.
- Step 1 – Site visit: We measure the patio, find beams or columns in the house wall and note doors, windows and the afternoon sun.
- Step 2 – Layout: We propose the sail shape, corner heights, slope and colour, keeping fixings clear of doors and windows.
- Step 3 – Structural check: Wall fixings, posts and footings are checked for corner loads and wind as per IS 875 (Part 3).
- Step 4 – Posts and foundations: Pad eyes are fixed and sealed into the house structure, and posts go on RCC footings.
- Step 5 – Final measurement and fabrication: We measure the sail between the wall fixings and posts and make it to size.
- Step 6 – Tensioning and handover: The sail is tensioned, the slope checked, and the tension re-checked after a few weeks.
Patio Shade Sail Design and Installation Solutions
ShadeCo India installs patio sails for houses, villas, apartments and farmhouses. Our team fixes the high corners safely into the house and sets the sail to block the afternoon sun.
Why Work with ShadeCo India
Since 2010, ShadeCo India has gained more than 15 years of experience in shade and tensile work. We are ISO 9001:2015 certified. Our own engineers check the house wall before any fixing, and our installers seal every fixing point.
Homeowners and organizations alike work with us, including Delhi Public School, Food Corporation of India, L&T, TATA, Adani, Al-Karim University, Indian Oil, Omaxe, VIVO, Lakhani, Indian Railways and Reliance. ShadeCo India also serves several other organizations across India.
On every patio sail, we check wall fixings, slope and tension before handover. A patio sail is typically delivered in 3–6 weeks, depending on its size and customization.
Explore Our Shade Sail Projects
Our projects page includes canopies built against existing buildings, such as school gateways and café covers beside a convention centre. ShadeCo India completed these for institutions and businesses across India.
Those projects show how we attach fabric shade to a building without spoiling its look. The same care goes into fixing a patio sail to your house wall.
Check our completed projects, then share photos of your patio and house wall. We will suggest strong fixing points and a sail that suits your home.
Service Availability Across India
ShadeCo India provides patio shade sail solutions across major cities and regions in India. Patio sails are installed in Delhi, Gurugram, Faridabad, Noida, Lucknow, Chandigarh, Ludhiana, Jaipur, Jodhpur, Shimla, Dehradun, Haridwar, Bhopal, Indore, Gandhinagar, Ahmedabad, Patna, Muzaffarpur, Mumbai, Pune, Bengaluru, Hyderabad, Chennai and Kochi. Homes in other towns are served based on project scope and site requirements.
Each patio sail is planned around the direction your patio faces, local heat and monsoon rain. We keep work short and tidy, since the family uses the patio every day.
Planning a Patio Shade Sail?
If you want shade over your patio or outdoor dining area, ShadeCo India can advise on wall fixings, sail shape and fabric.
We request you to share photos of the patio and house wall, the patio size and the direction it faces. With your location, our team can propose a patio sail that suits the house.
You can call +91-9873975818, write to info@shadecoindia.com, or reach us through our contact page.
FAQ
Frequently Asked Questions - Patio Shade Sail
A patio shade sail is a fabric sail fixed to the house wall on one side and to posts on the other. It shades a patio or outdoor dining area next to the home. It is angled to block the afternoon sun.
The cost depends on patio size, number of posts, wall fixings, fabric and hardware. Fixing to the house means fewer posts to pay for. ShadeCo India quotes from patio photos, size and location.
HDPE is best for a cool, airy patio at a lower cost. PVC-coated polyester is better if you want to use the patio in the monsoon. Both can block up to 98% of UV, depending on the fabric.
Yes, at strong points such as RCC beams or columns. We check the wall first and seal each fixing against water. Brick infill and plaster are not used as fixing points.
How long it lasts comes down to sun exposure, correct tension and upkeep. Stainless fittings and sealed wall fixings protect the most important points. Keeping the sail tight and clean helps it last.
The sail slopes away from the house, and PVC sails send rain to a low corner away from doors. Wall fixings, posts and footings are checked for wind as per IS 875 (Part 3).
A patio sail is usually delivered within 3–6 weeks, based on size and design. Fixings and posts go in first, then the sail is made to the measured size.
It should block the afternoon sun, which usually comes from the west or south-west. We check your patio's direction on site and angle the sail to shade it when it is used most.
